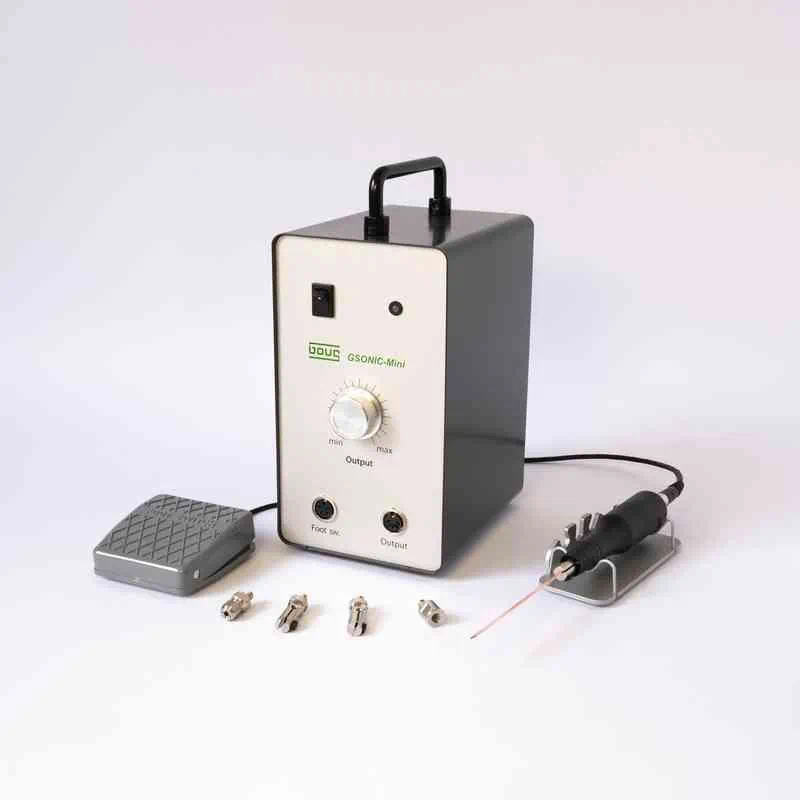

Ultrasonic Polishing Machine
Model：GSONIC-1082MINI
Ultrasonic Polisher

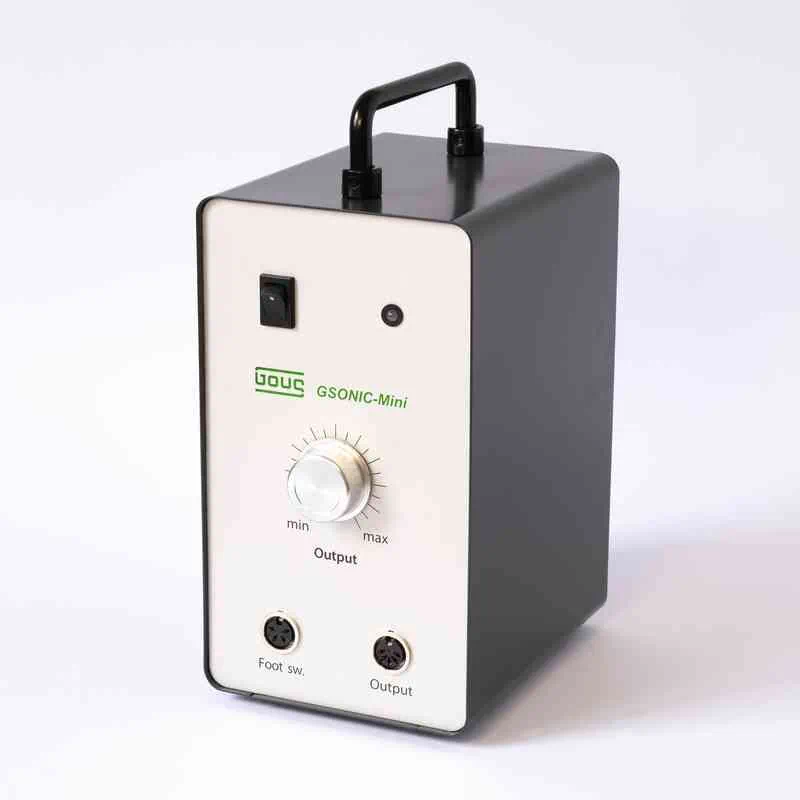

This is a full metal shell, vertical portable ultrasonic polishing machine
Add to inquiry
This is a full metal shell, vertical portable ultrasonic polishing machine
Introduction
GSONIC-1082MINI is a compact and portable high-performance ultrasonic polishing machine, designed for polishing ribs, slots, and intricate details in molds, metal components, and precision assemblies, offering significantly faster processing than manual methods.
This unit operates at a 20–30kHz oscillation frequency, with a 3–40μm continuously adjustable amplitude, and 36W output power. Equipped with automatic frequency tracking technology, it dynamically adjusts to the workpiece material and processing conditions, optimizing polishing efficiency while reducing manual adjustments.

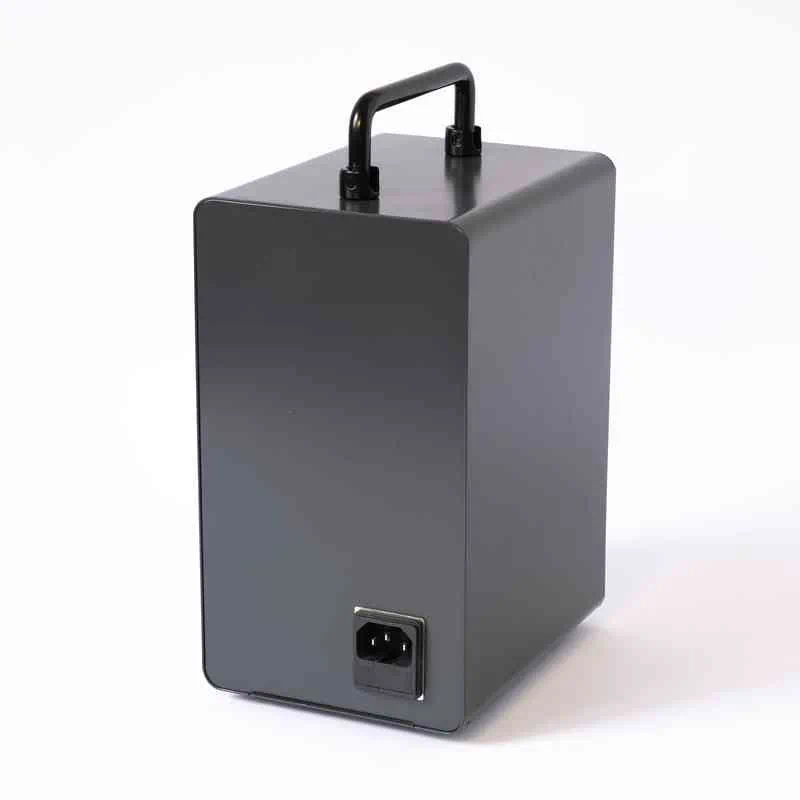

This ultrasonic polishing machine features a compact chassis, a foldable carrying handle, and a durable metal housing, making it easy to transport and store. It is ideal for mold finishing, precision component processing, and industrial manufacturing applications, ensuring versatile operation across different work environments.
Functions
International power supply AC 90-240V 50/60Hz
Max. power consumption 45 watts
Ultrasonic frequency auto-tracing
Specification
|
Power Pack Specification |
|
| Power supply | AC90-240V 50/60Hz |
| Max. power consumption | 45 Watts |
| Ultrasonic frequency range | 18-26 KHz |
| Adjustment of Ultrasonic output | Continuous |
| Ultrasonic amplitude | 3-40μM |
| Method of frequency adjustment | Auto-tracing |
| Suspension detection & protective circuit | Yes |
| Overload protection circuit | Yes |
| Fuse | 2A 20mm time-lag type |
| Dimensions | W120xD160xH230 mm |
| Weight | 2.0 Kg |

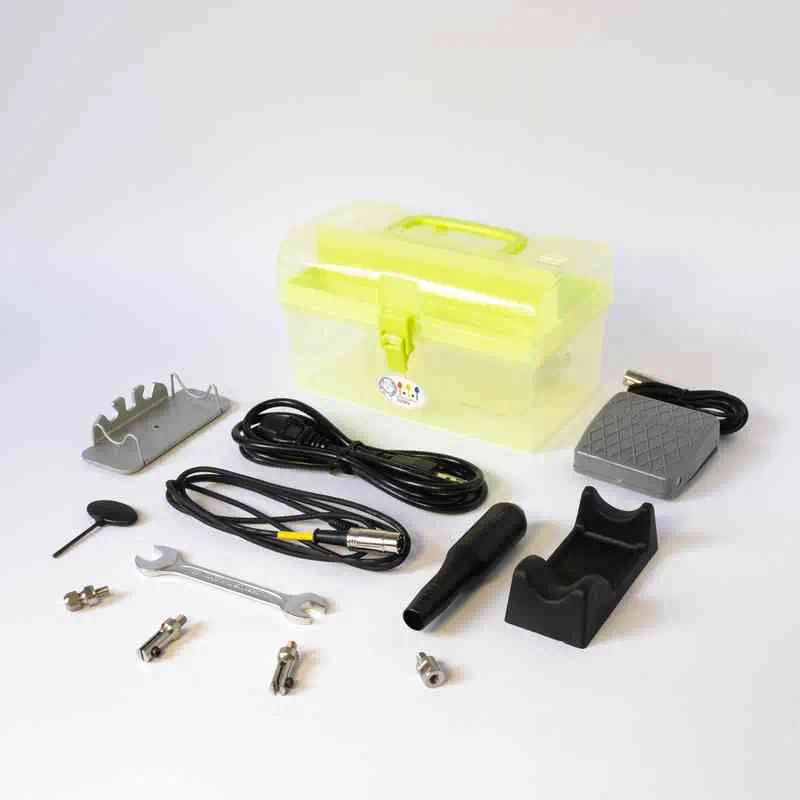

GSONIC-1082MINI Standard Parts
|
Name |
Item | Specifications | |
|
Power Cord |
 |
PC-02 | 18AWGx3Cx180cm L |

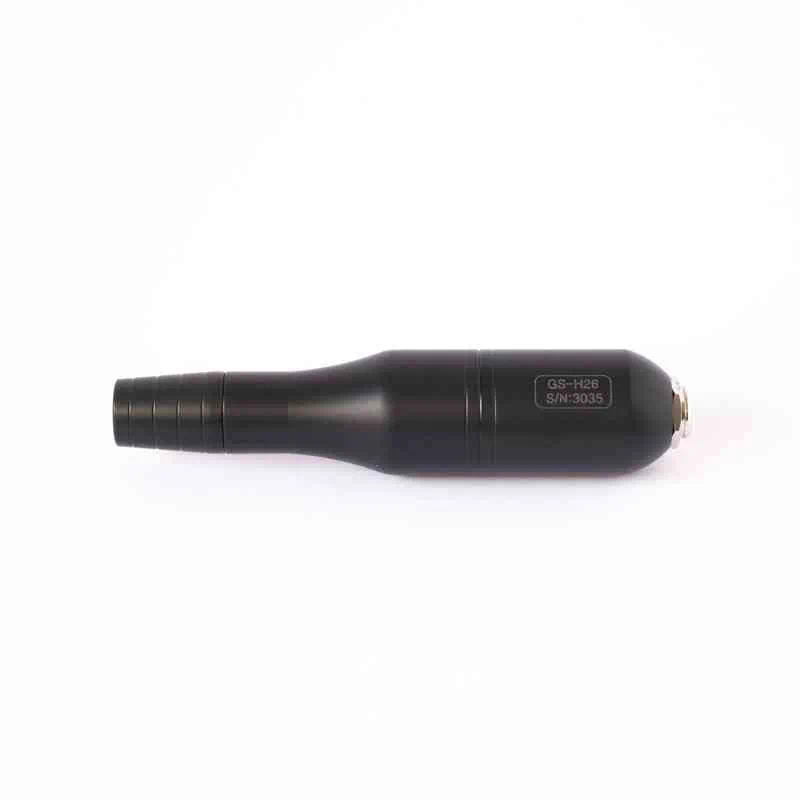

| Ultrasonic Small Handpiece |  |
GS-H08 | Screw Thread:M6mm Dimensions:Ø26x116mm 36Watts Net Wt.:140g |
| Small Handpiece Cord |  |
CB-0608 | 3Cx150cm L |
| Handpiece rest |  |
GS-B01 | 110x50x35 mm |
| Spare Fuse |  |
3A 20mm Time-Lag | |
| Tool changing rack |  |
GS-R10 | 10mm W |
| Tool Box |  |
22.5x13.5x12.5 cm | |
| Wrench |  |
10mm/12mm | |
| Hex Wrench |  |
2.5mm | |

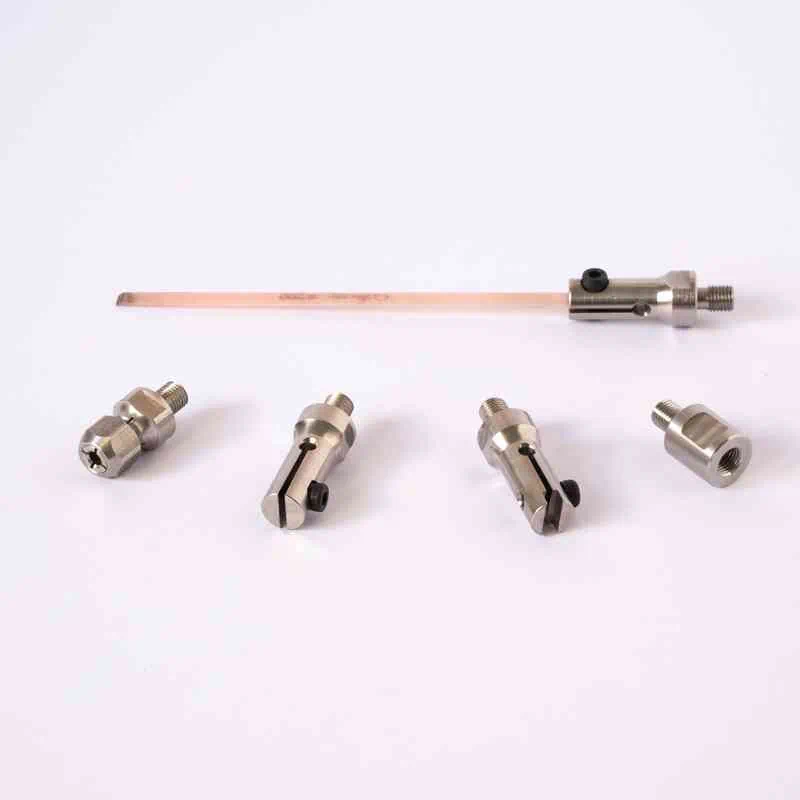

| Tool holder |  |
GS-0511T | T 1.1mm M6 For ceramic stones |
| Tool holder |  |
GS-0531T | T 3.1mm M6 For oil stones |
| Tool holder |  |
GS-0530Ø | For Ø3.0mm shank Tools |
| Adapter |  |
GS-M6-M6 | For M6 Shank Tool |

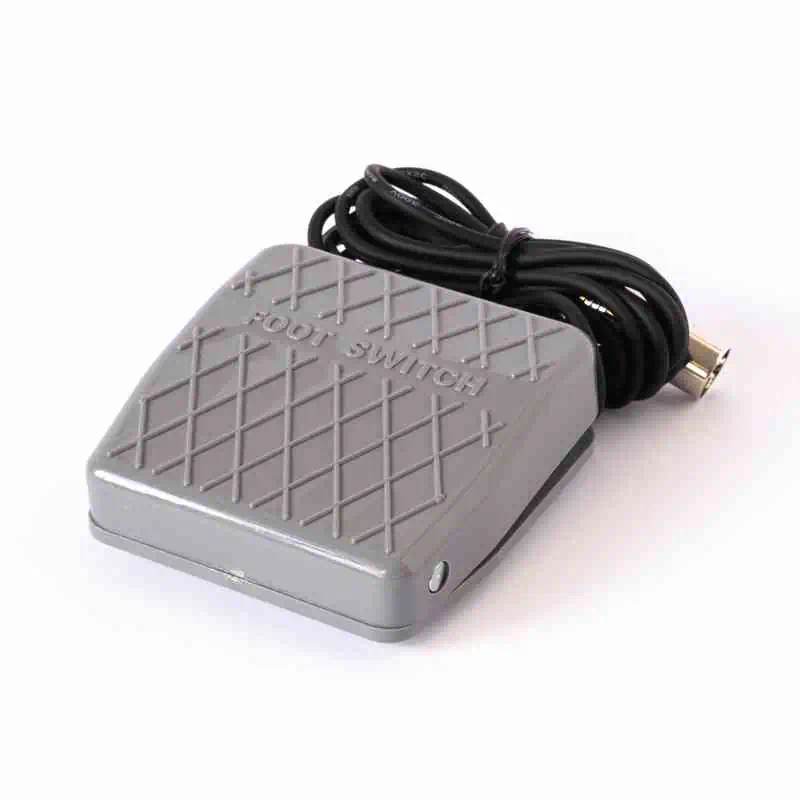

| Foot switch |  |
GS-F02 | Cord Length 190cm |
