Multi Purpose Polishing System 3N1 Manufacturer

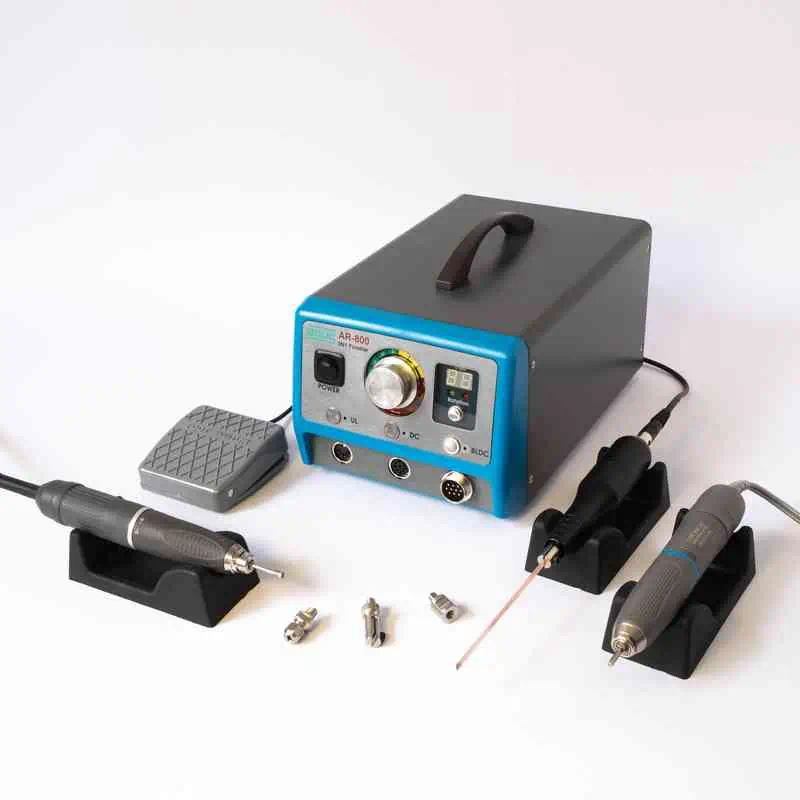

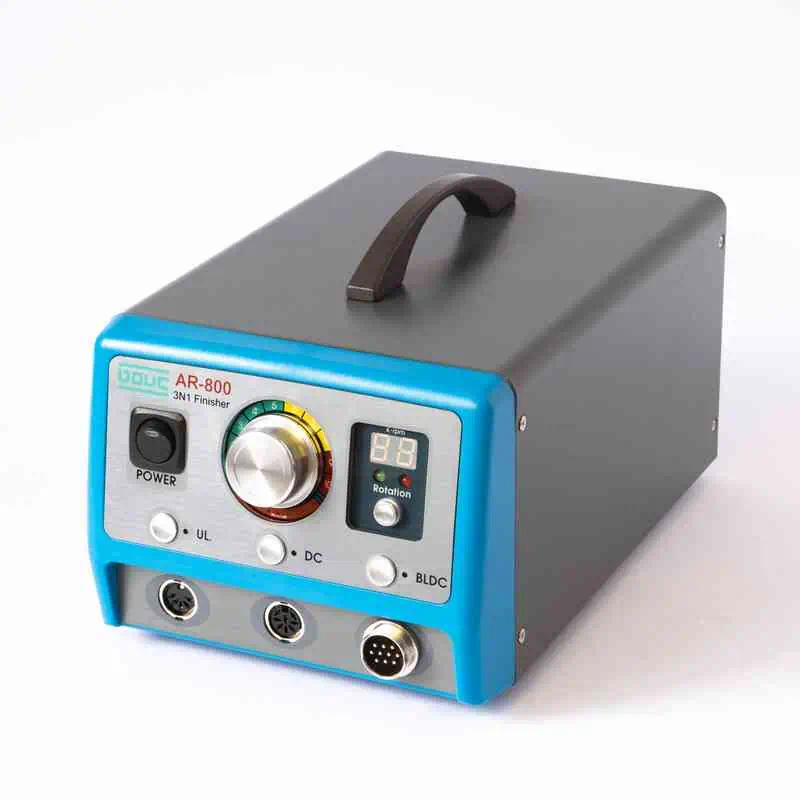

As a flagship model, the AR-800 ultrasonic die polishing machine integrates ultrasonic vibration, brushed DC, and brushless DC outputs, making it highly adaptable for polishing milled surfaces, EDM-treated surfaces, and rough-textured materials, achieving a mirror-like finish.

AR-800 equipped with advanced microprocessor control, it allows precise speed and power adjustments, ensuring optimal polishing performance based on material requirements.

Beyond metal and mold polishing, this ultrasonic die polishing machine is also ideal for removing pattern cut-resist films from PCB surfaces. Using ultrasonic precision vibration technology, it effectively eliminates the resist layer without damaging the substrate.

• High-torque output: 300W brushless DC + 150W brushed DC, effortlessly handling carbide, titanium, and other high-hardness materials.
• Integrated DC output power display and forward/reverse switch, enabling flexible control of DC motor operation for diverse processing needs.
• Safety features: Auto-zero reset and overload protection enhance operational safety and machine longevity.
•  Compatible with all grades of finishing stones, ensuring versatile polishing applications.

The DC output supports rotary, reciprocating, oscillating, and belt-driven polishing tools, providing versatile solutions for large-area finishing, intricate groove polishing, and specialty surface refinement. The BLDC output, when paired with the BM-50 brushless rotary handpiece, delivers high-speed and high-torque performance, making it suitable for extended use and high-hardness material finishing.

The AR-800 ultrasonic die polishing machine is equipped with the GS-H08 ultrasonic handpiece, featuring 36W continuously adjustable power output, allowing precise reciprocating motion for high-precision polishing applications.

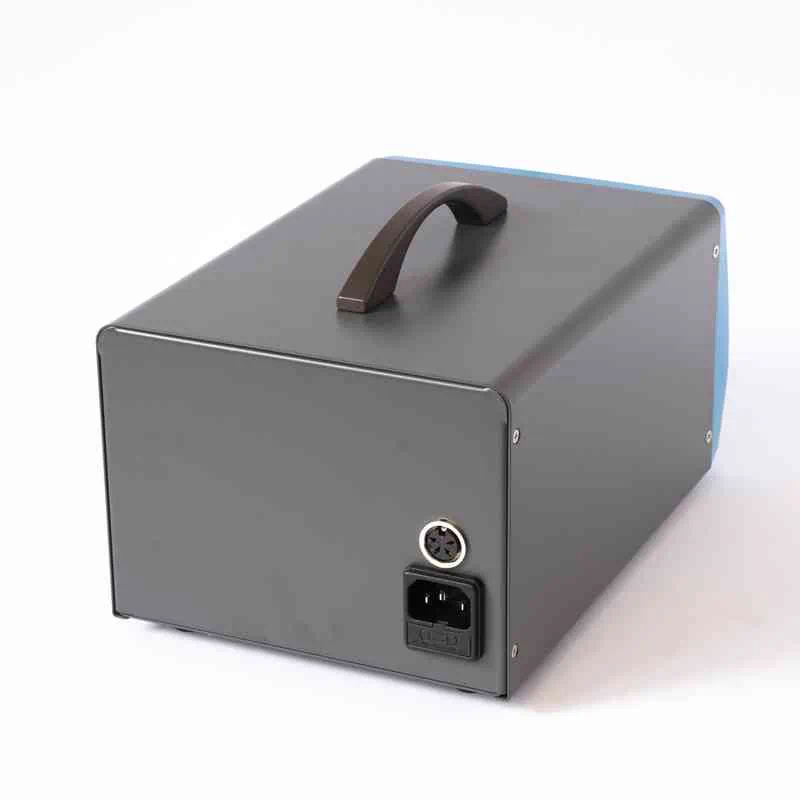

• Power supply of AC90-240V at 50/60Hz.
• High-efficiency microprocessor, with more flexible and user-friendly functions.
• Regulated power supply for low power consumption and over heating.
• Overload protective circuit and load indicator incorporated to enable safe and continuous usage.
• Ultrasonic function, DC rotary and DC brushless rotary functions incorporated and one single unit.
• High torque and high power output for DC and Dc brushless motor output.

Name

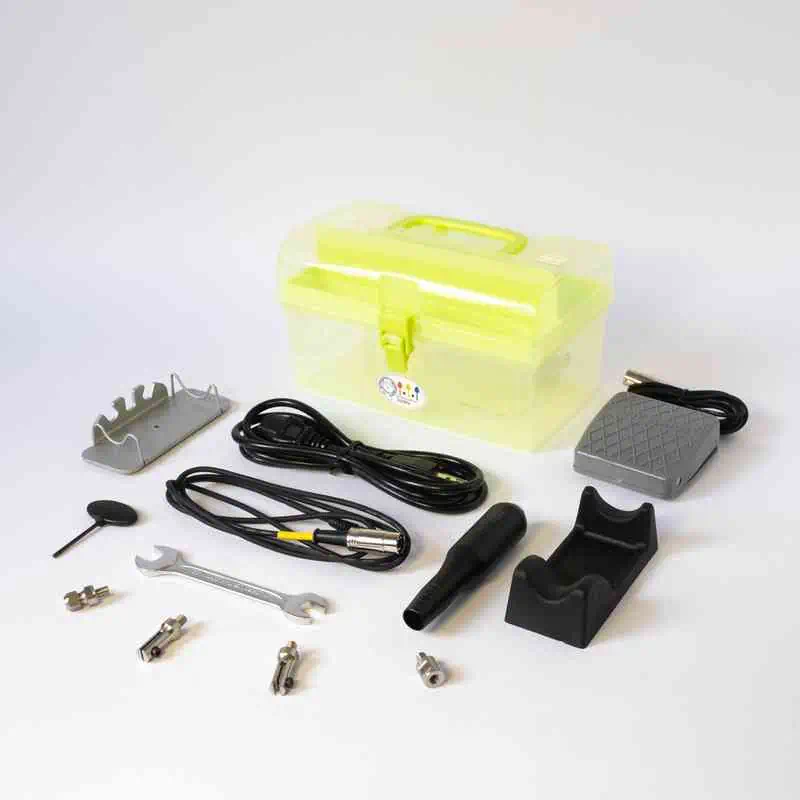

AR-800 Standard Parts

Name		Item	Specifications
Power Cord		PC-02	18AWGx3Cx180cm L
Ultrasonic Small Handpiece		GS-H08	Screw Thread:M6mm Dimensions:Ø26x116mm 36Watts Net Wt.:140g
Small Handpiece Cord		CB-0608	3Cx150cm L
Handpiece rest		GS-B01	110x50x35 mm
Spare Fuse			3A 20mm Time-Lag
Tool changing rack		GS-R10	10mm W
Tool Box			22.5x13.5x12.5 cm
Wrench			10mm/12mm
Hex Wrench			2.5mm

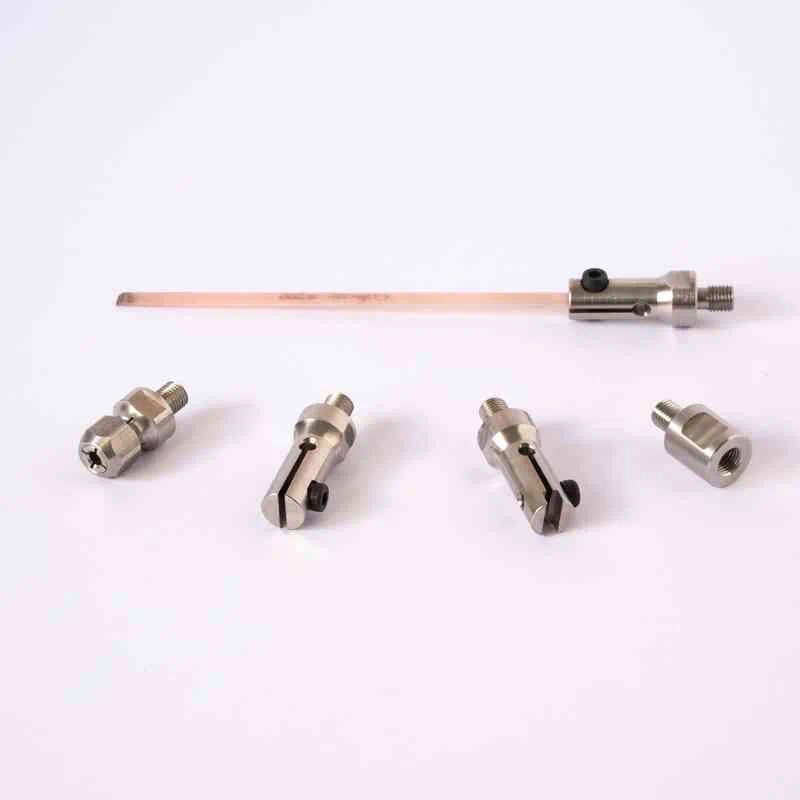

Tool holder		GS-0511T	T 1.1mm M6 For ceramic stones
Tool holder		GS-0531T	T 3.1mm M6 For oil stones
Tool holder		GS-0530Ø	For Ø3.0mm shank Tools
Adapter		GS-M6-M6	For M6 Shank Tool
Foot switch		GS-F02	Cord Length 190cm

Optional Parts

Name		Item	Specifications

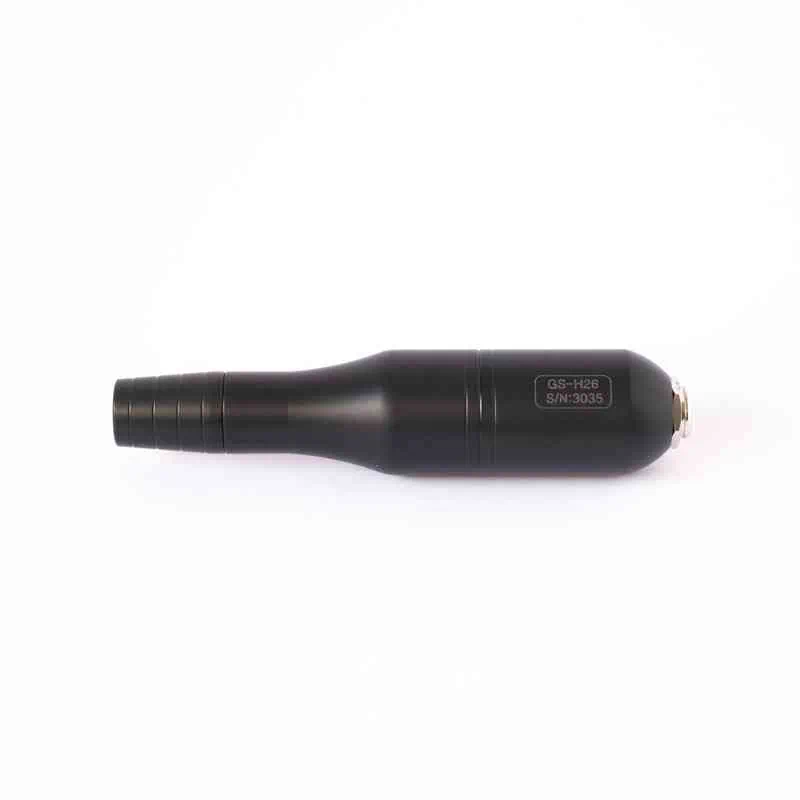

Ultrasonic handpiece		GS-H09	Screw Thread:M8mm Dimensions:Ø33x147mm Net Wt.:248g

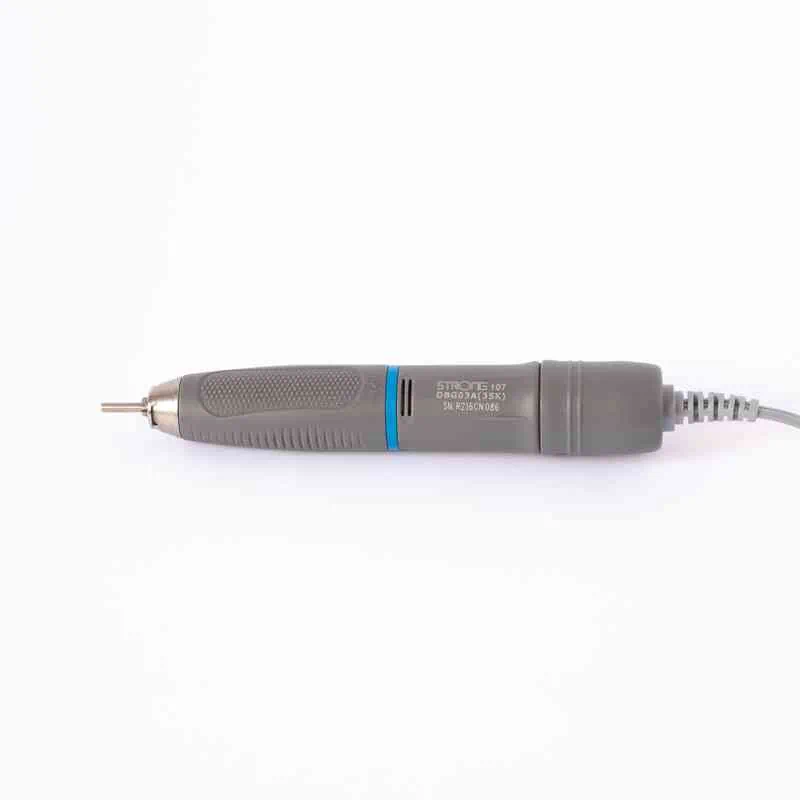

DC Rotary Handpiece		ST-107	Dimensions:Ø33x145mm Net Wt.:260g
Brushless rotary handpiece		BM50S1	Max Speed: 50,000 rpm Torque: 7.8Ncm Net Wt.:238g
Adjustment-type foot switch		GS-F03	Cord Length 190cm
