Ultrasonic Polishing Machine
Model：AR-108
This lightweight and affordable portable ultrasonic polishing machine is designed for precision work, making it a reliable Supersonic Polisher for various applications.
Add to inquiry
Introduction
The AR-108 is an affordable ultrasonic polishing machine featuring automatic power regulation, a function typically found only in high-end equipment. It is suitable for mold finishing, fine slot & groove micro-machining, and PCB circuit modifications.
- 36W high-power output, operating at 25,000 vibrations per second, with an adjustable amplitude range of 10–35μm.
- Power suspension system reduces output to 6W when the handpiece is idle, preventing overheating and extending transducer lifespan.
- Pressure-sensitive power adjustment: The system dynamically adjusts output based on applied hand pressure, ensuring ultra-precise polishing results.
Compared to traditional manual polishing, this ultrasonic polishing machine significantly enhances efficiency, ensuring consistent and fine surface finishes.
Functions
the machine with a reliable quality and good performance.
Attractive price would absolutely change your image of an expensive ultrasonic unit. Not only effective for lapping but also slithering printed circuit board (PCB) for circuit amendment.
Specification
|

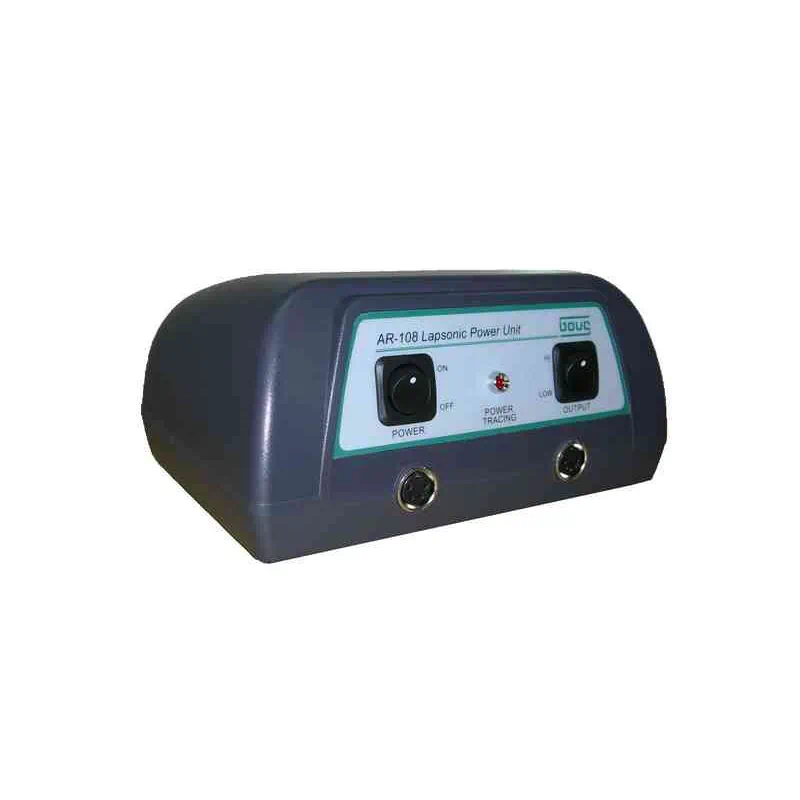

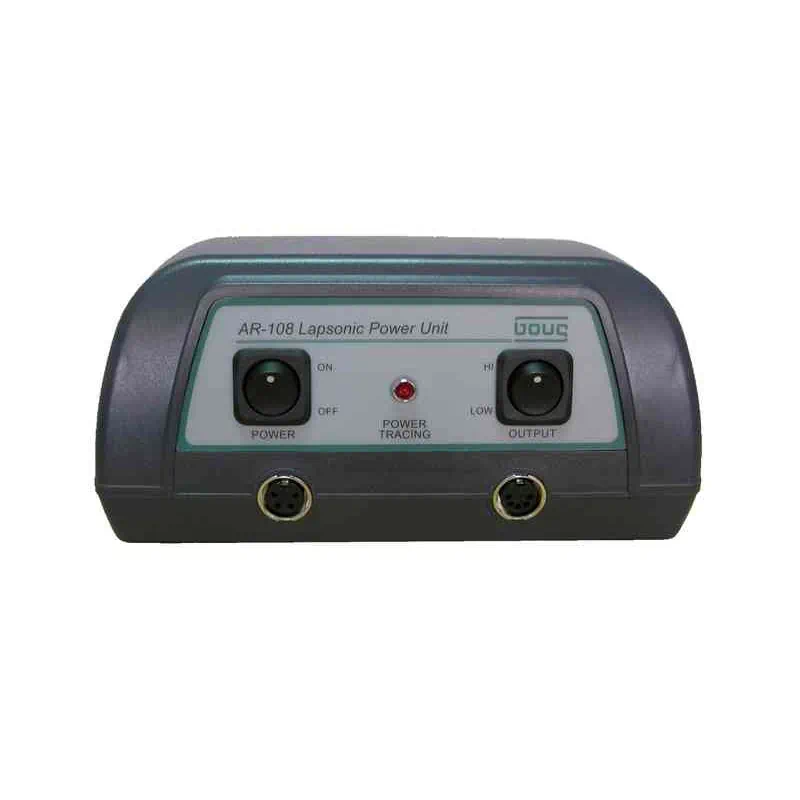

Power Pack Specification |
|
| Vibration Frequency | 18~25KHz |
| Power Output | 36W |
| Frequency Adjustment | Automatic feedback system |
| Power Consumption Max. | 46W |
| Output level | Low/Hi Two-level |
| Power supply | 90~240V AC, 50/60Hz |
| Fuse | 2A 20mm Time~Lag |
| Dimensions | 192x156x98mm |
| Net Weight | 420g |

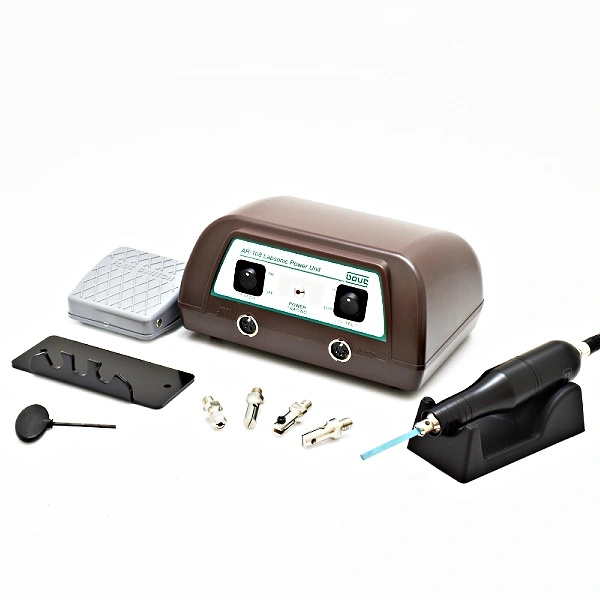

AR-108 Standard Parts
|
Name |
Item | Specifications | |
|
Power Cord |
 |
PC-02 | 18AWGx3Cx180cm L |

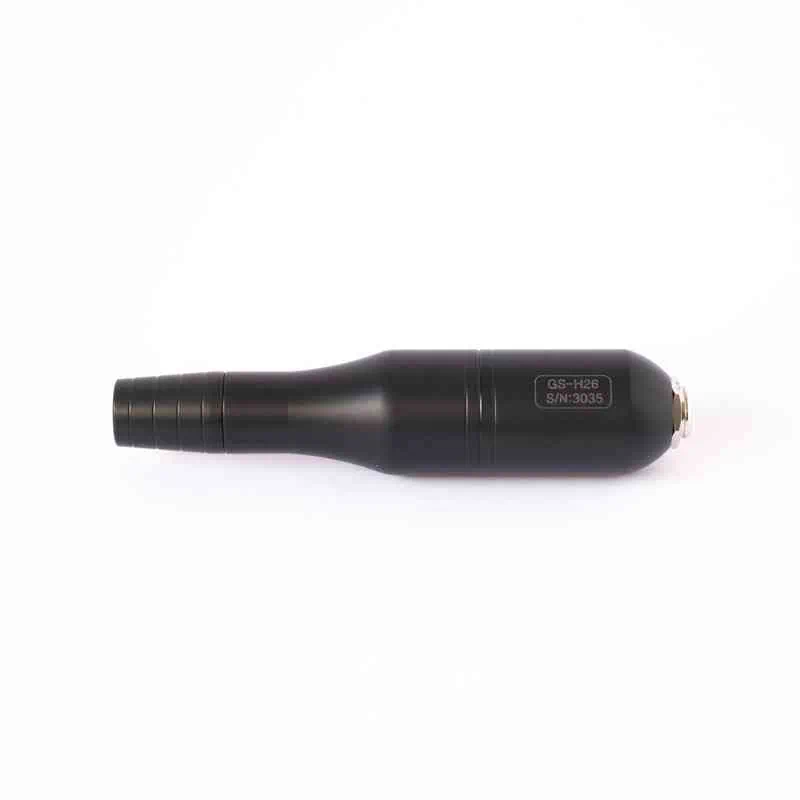

| Ultrasonic Small Handpiece |  |
GS-H06 | Screw Thread:M8mm Dimensions:Ø30x131mm Net Wt.:185g |
| Handpiece Cord |  |
CB-0608 | 3Cx150cm L |
| Handpiece rest |  |
GS-B01 | 110x50x35 mm |
| Tool changing rack |  |
GS-R10 | 11mm W |
| Wrench |  |
10mm/11mm | |
| Hex Wrench |  |
2.5mm | |

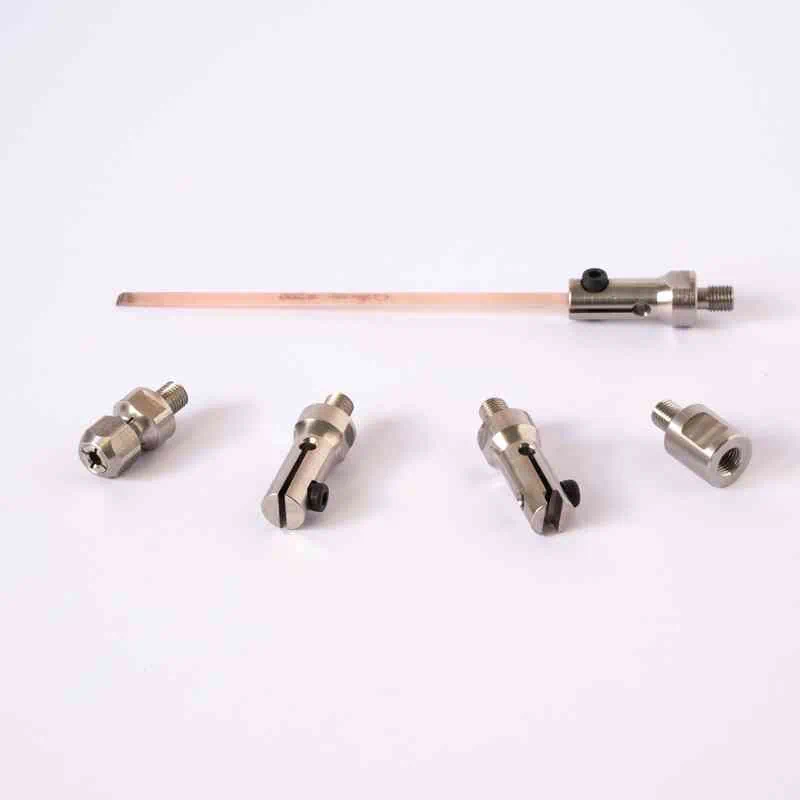

| Tool holder |  |
UL-31T | For oil stone |
| Tool holder |  |
UL-30Ø | For Ø3.0mm Shank tools |
| Tool holder |  |
UL-11T | For ceramic stones 1.0t |

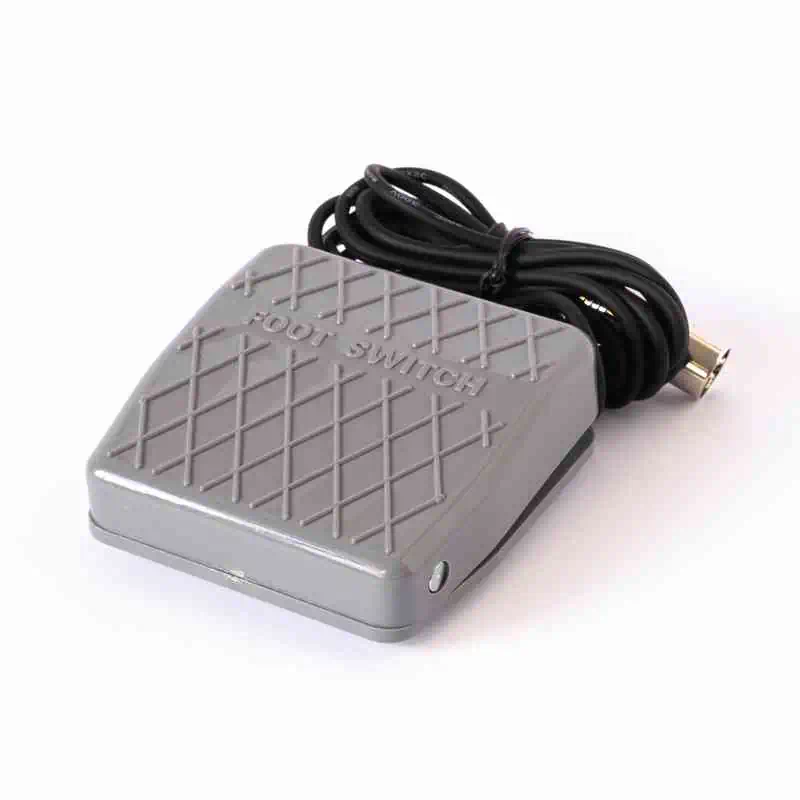

| Foot switch |  |
GS-F02 | Cord length 190cm |
| Fuse |  |
2A 20mm Time-Lag | |
Optional Parts
|
Name |
Item | Specifications | |
|
Tool holder |
 |
UL-06T | For knife tools 0.5mm t |
