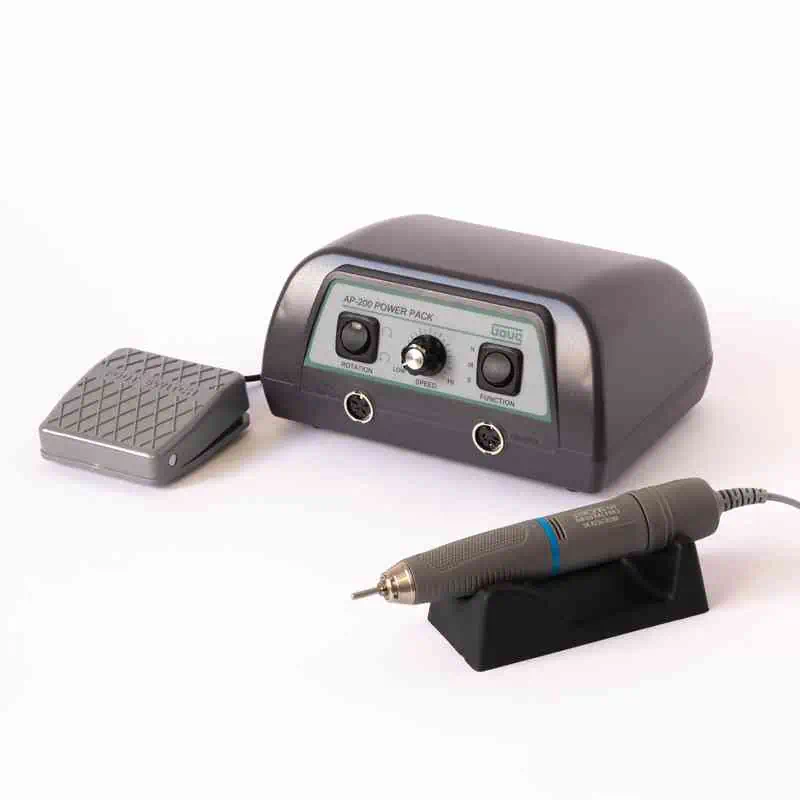

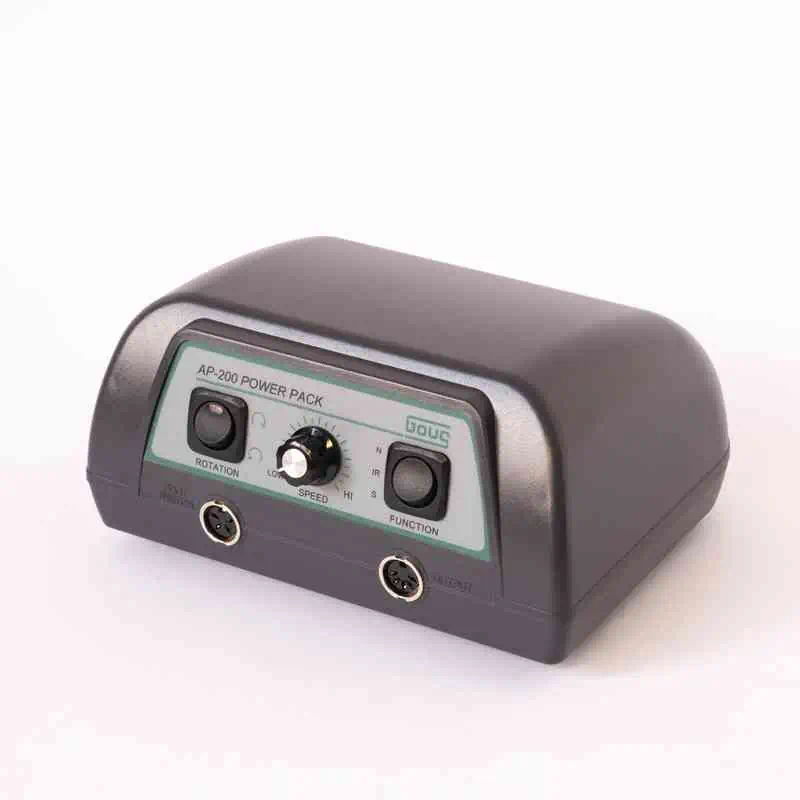

Multi-function Brush Rotary Micromotor Controller
Model：AP-200
This is a lightweight and portable multifunctional brushed rotating micromotor controller, which can be applied to precision DC Micromotor Polishing applications.
Add to inquiry
Introduction
GOUS is the brush rotary micromotor controller manufacturer to offer customers the best quality and service for our products.
The Multi-function Brush Rotary Micromotor Controller provides precise control and versatility for a range of applications. This device seamlessly integrates with various rotary tools, such as micro-motors, dental drills, and engraving pens. The controller offers adjustable speed settings, forward/reverse functionality, and a foot pedal for hands-free operation. It's ideal for intricate tasks in fields like dentistry, jewelry making, model building, and electronics repair, where precise control and maneuverability are paramount.
Functions
5~32 VDC Variable speed control.
3 function for output mode.
*N--Normal 5~32VDC output.
*IR--Automatic speed keep.
*S--Soft start.
Automatic overload protection.
Forward/reverse switch.
Automatic reset function.
Rapid stop ability after power off.
Variable speed foot panel.(option)
Specification
|
Power Pack Specification |
|
| Power Supply | AC 90~250V 50/60Hz |
| Output | 5-30V DC, continuous adjustment |
| Adjustment-type foot switch | Option |
| Dimensions | 192x156x98mm |
| Weight | 800g |
Standard Parts
|
Name |
Item | Specifications | |
|
Rotory Handpiece |
 |
ST-107 | Dimensions:Ø33x145mm Net Wt.:260g |

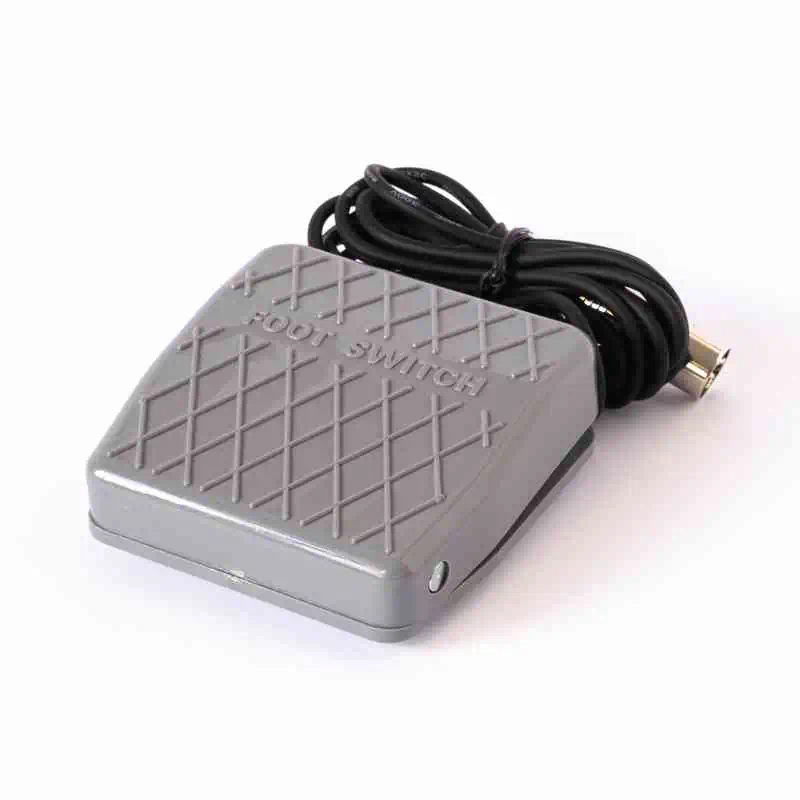

| Foot switch |  |
GS-F02 | Cord Length 190cm |
| Adjustment-type foot switch (Option) |
 |
GS-F03 | Cord Length 190cm |
| Handpiece rest |  |
GS-B01 | 110x50x35mm |
