Ultrasonic Cutting Machine
Model：GSONIC-1082CUTTER

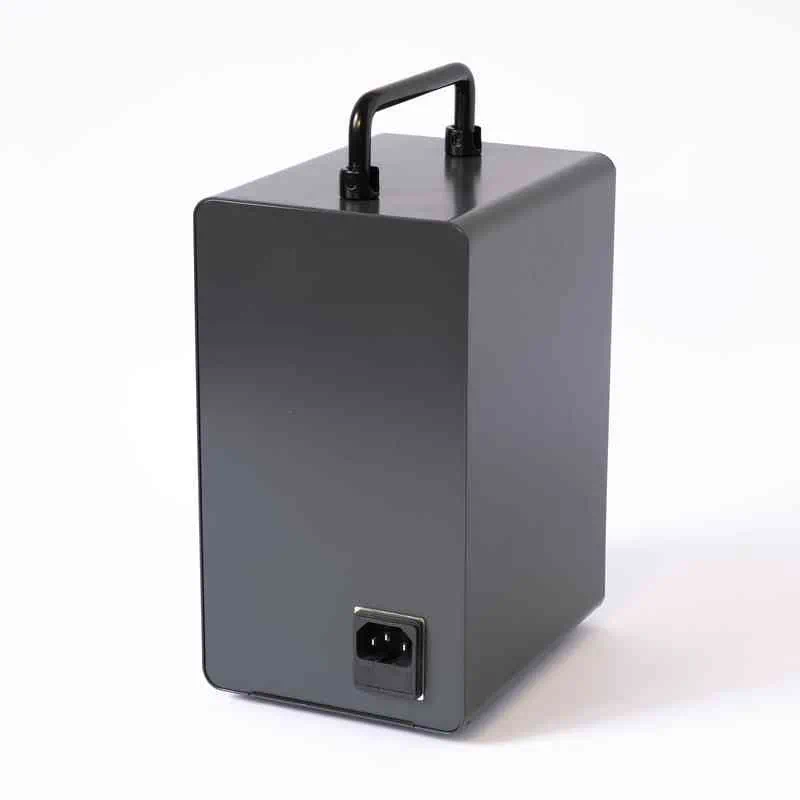

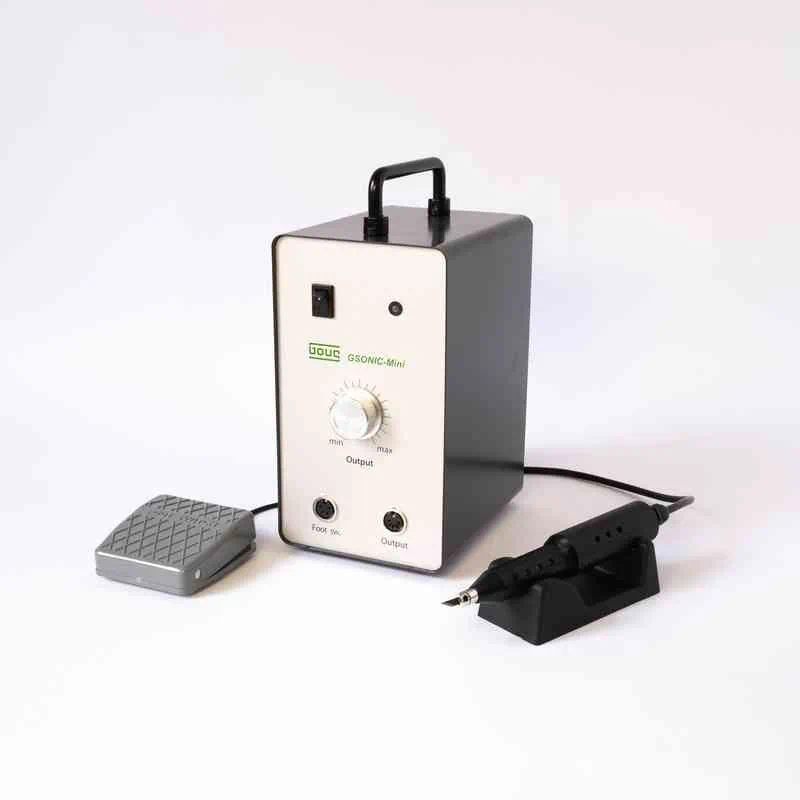

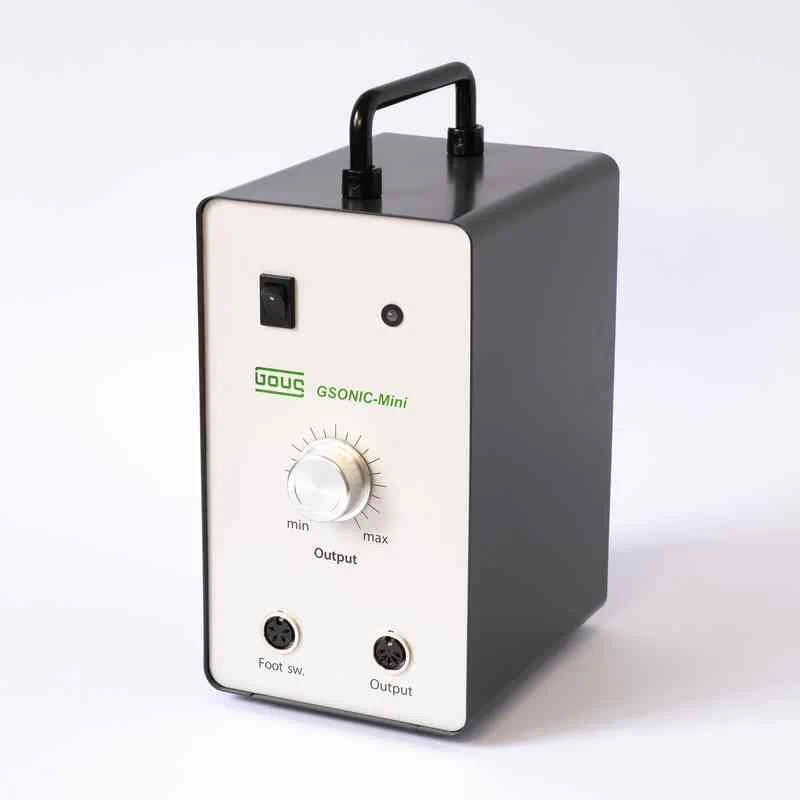

This is an all-metal shell, upright portable ultrasonic cutting machine
Add to inquiry
Introduction
GOUS is an ultrasonic cutter manufacturer for more than 30 years producing a wide range of high quality products.
Ultrasonic Cutting Machines utilize high-frequency vibrations to generate heat and friction, allowing for precise and clean cuts in various materials. These machines are ideal for delicate tasks, such as cutting fabrics, plastics, and even some metals. They offer advantages like reduced heat generation, minimal material deformation, and the ability to create intricate patterns and shapes.
Functions
International power supply AC 90-240V 50/60Hz
Max. power consumption 40 watts
Ultrasonic frequency auto-tracing
Specification
|
Power Pack Specification |
|
| Power supply | AC90-240V 50/60Hz |
| Max. power consumption | 45 Watts |
| Ultrasonic frequency range | 39-47 KHz |
| Adjustment of Ultrasonic output | Continuous |
| Ultrasonic amplitude | 3-40μM |
| Method of frequency adjustment | Auto-tracing |
| Suspension detection & protective circuit | Yes |
| Overload protection circuit | Yes |
| Fuse | 2A 20mm time-lag type |
| Dimensions | W120xD160xH230 mm |
| Weight | 2.0 Kg |
GSONIC-1082CUTTER Standard Parts
|
Name |
Item | Specifications | |
|
Power Cord |
 |
PC-02 | 18AWGx3Cx180cm L |

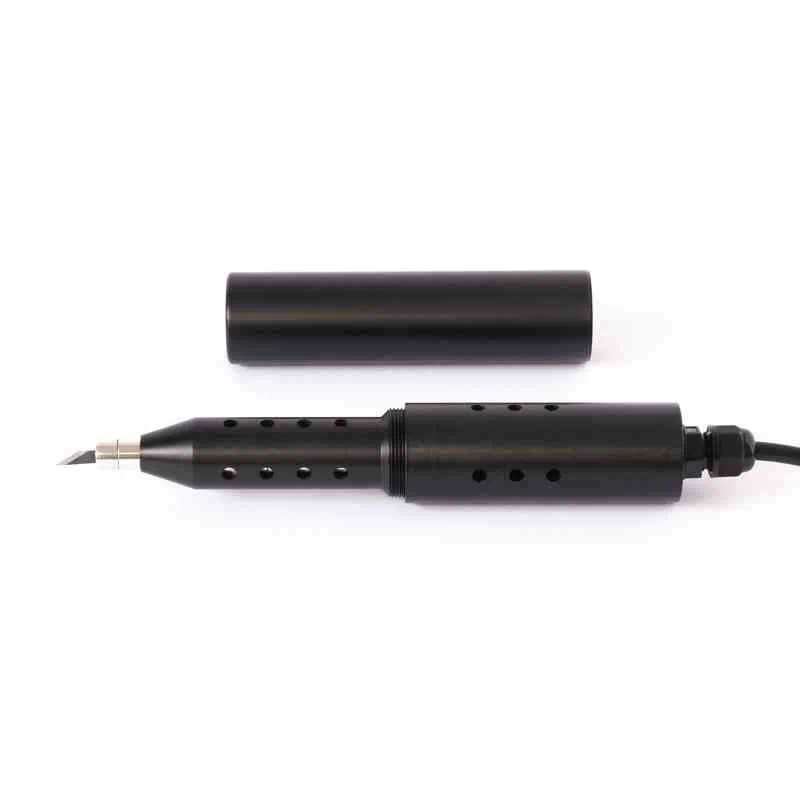

| Ultrasonic Small Handpiece |  |
UC‐60N‐03 | Dimensions:Ø27.5x182mm 40Watts Net Wt.:200g |
| Handpiece rest |  |
GS-B01 | 110x50x35 mm |
| Spare Fuse |  |
3A 20mm Time-Lag | |
| Tool Box |  |
22.5x13.5x12.5 cm | |
| Foot switch |  |
GS-F02 | Cord Length 190cm |
