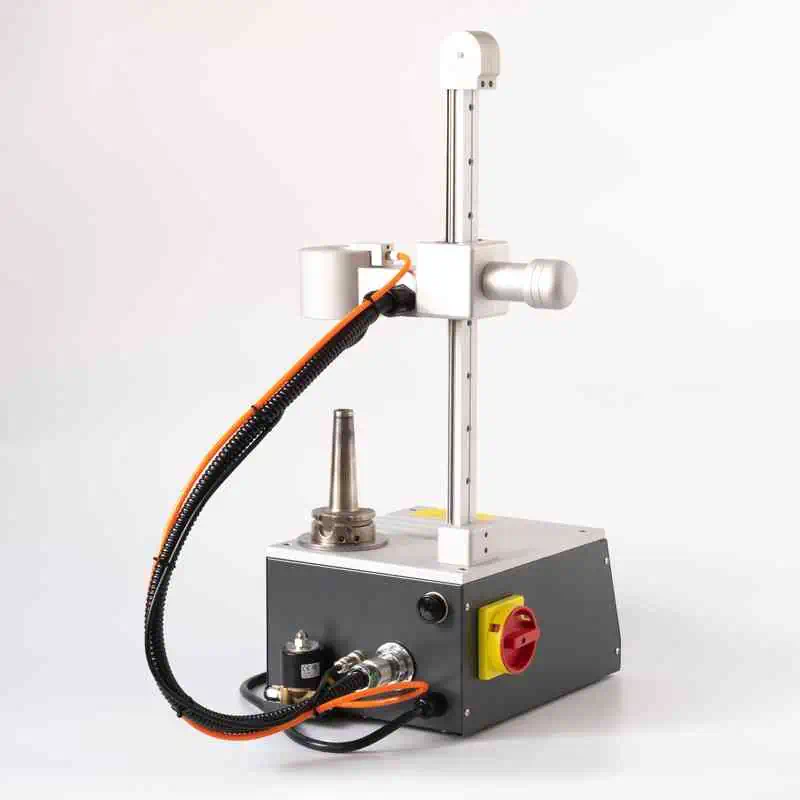

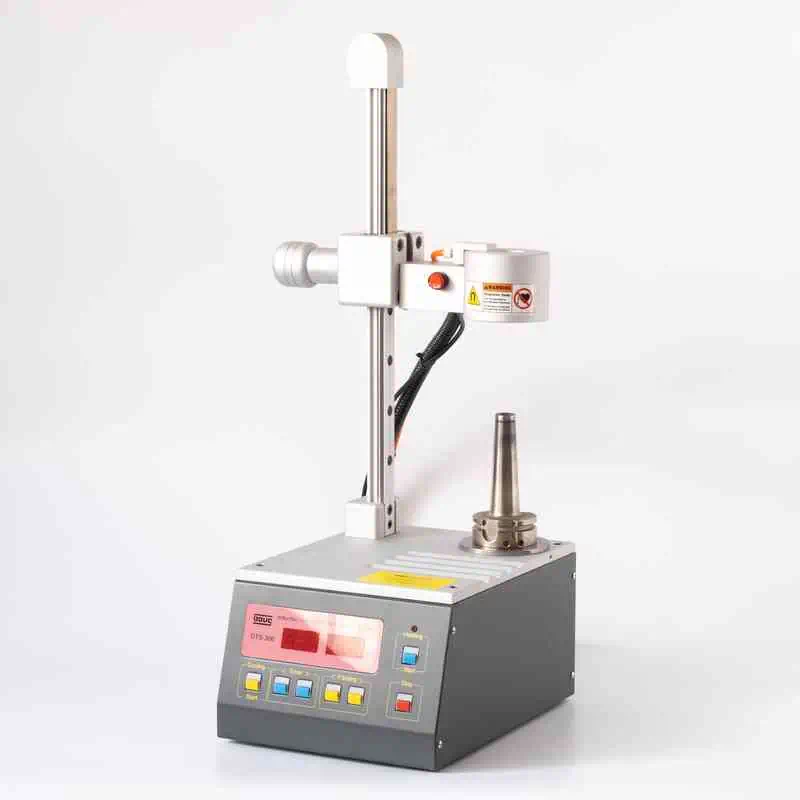

Induction Shrink Fit Machine
Introduction
Induction Shrink Fit Machine is a technique used to join metal parts by heating one part to expand it, thus allowing the insertion of another part. When the heated part cools, it tightens the inserted part, creating a strong and inseparable bond. This process ensures the accuracy and durability of the part, which is critical for applications requiring high structural integrity and reliability. The process can be disassembled by reheating and reversing the process, providing flexibility for maintenance and adjustments.
Functions
Fast Heating Principle:
The unit without hot-air source, The eddy current give out heat from high frequency magnetic field.
Shorter cycle time and easily operation.
Higher Efficiency:
The collet will be given heat from magnetic field to avoid Induction heater too hot when user is changing cutter.
Cooling Unit Function:
In the shrinking unit is with circular air outlet for cooling air from up side blow to down.
Specification
|

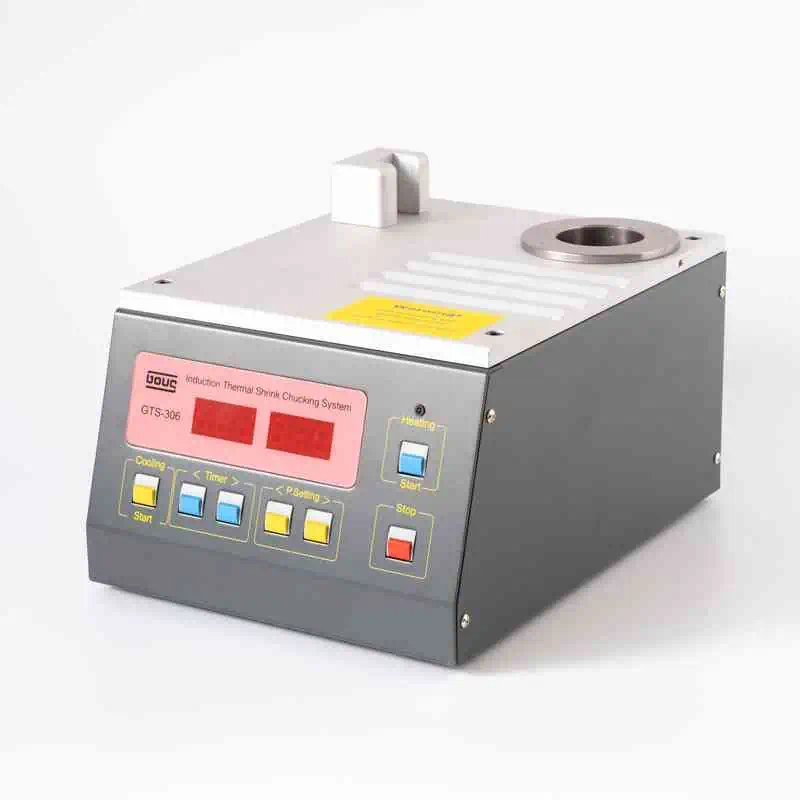

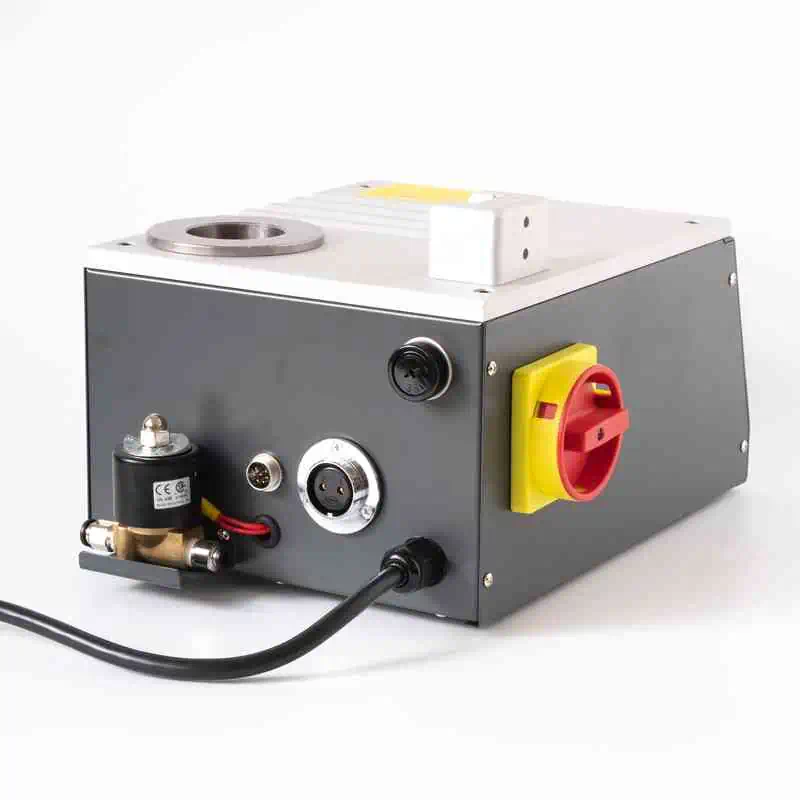

Power Pack Specification |
|
| Cooling Unit | Air cooling |
| Power | 220VAC 50/60HZ |
| Rated Ampere | 18A |
| Power Consumption | 4.0kw |
| Dimensions | 292mm(W)x360mm(D)x610mm(H) |
| Shrinking Period | 6-15 Sec. |
| Holder Support | HSK50/HSK63/HSK80/BT40/BT50 (Option) |
|

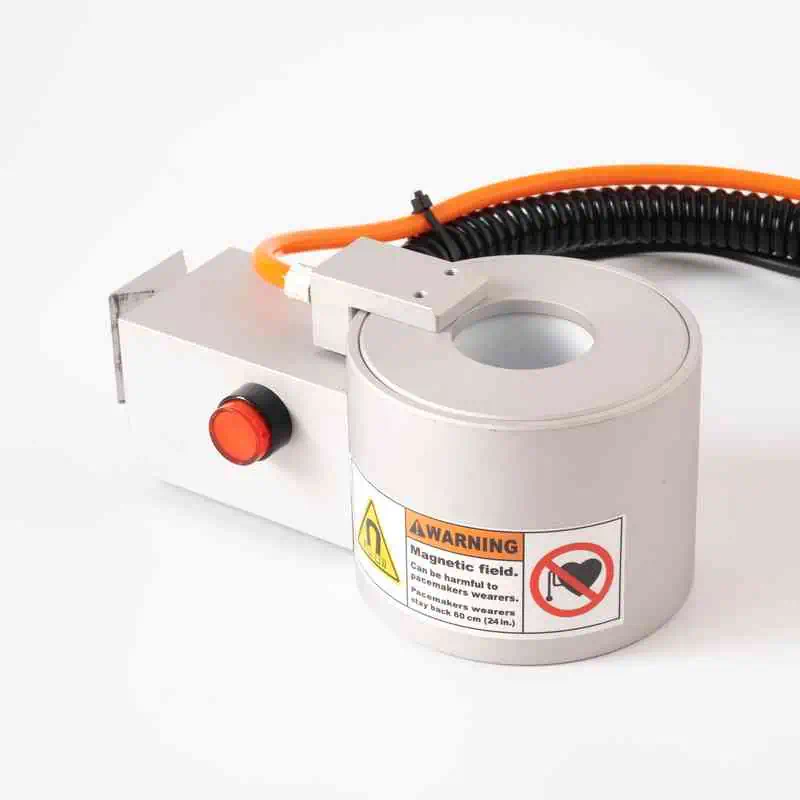

GTS-306 Induction Head Specifications |
|||||
| Name | Part No. | Specifications | Applicable Tool Holders | Image | Remarks |
| XS size Induction Head | 3H18 | ID 18mm | Front-end OD 6~12mm Suitable for both high- and low-magnetic-permeability steel tool holders |
 |
Custom-made |
| S size Induction Head | 3H28 | ID 28mm | Front-end OD 6~22mm Suitable for both high- and low-magnetic-permeability steel tool holders |
 |
|
| M size Induction Head | 3H35 | ID 35mm | Front-end OD 10~28mm Suitable for magnetically permeable steel tool holders |
 |
|
| L size Induction Head | 3H50 | ID 50mm | Front-end OD 16~44mm Suitable for magnetically permeable steel tool holders |
 |
|
| ES Induction Head | 3HES | Customized to order; stepped bore with multiple inner diameters |
Customized to order; suitable for both high- and low-magnetic-permeability steel tool holders |
|
Custom-made |
